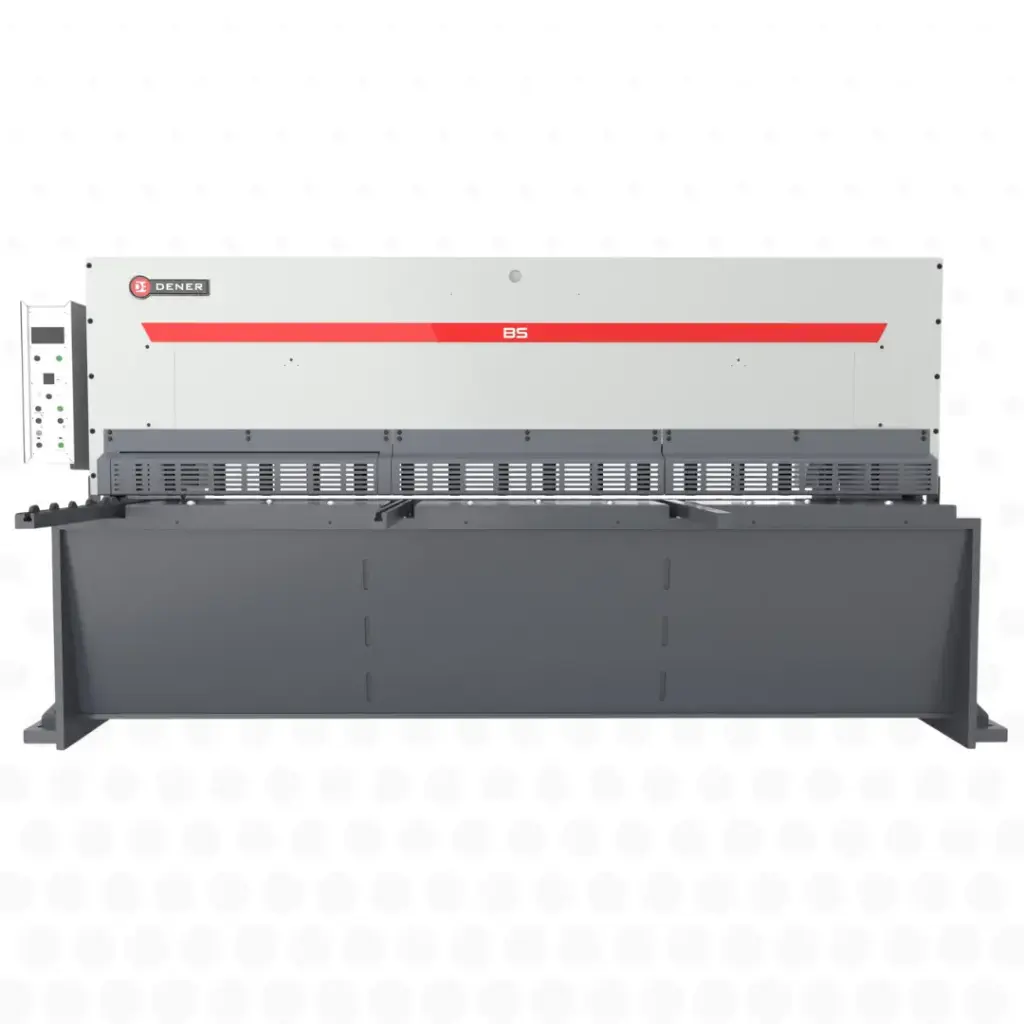

NC type guillotine shear
Marque : DENER
- Faster and higher-quality cuts.
- Robust and durable body structure.
- Manual adjustment of blade gap and cutting angle.
- High precision and ease of use.
- Low maintenance costs.
- Enhanced safety protection.
- Reliable components from internationally recognized brands.
- Reduced cutting costs.
Improve efficiency and precision with the DENER BS, an NC guillotine shear designed for reliable and consistent cutting operations. Designed for sheet metal workshops seeking simplicity and performance, it delivers excellent cutting quality while remaining easy to use. Ideal for daily production, it helps optimise workflow and ensure consistent results.
Key features & benefits
Reliable cutting precision
Ensures clean and consistent cuts thanks to precise process control.
Ease of use
Intuitive NC control simplifies operation and allows quick adjustments.
Controlled productivity
Enables production rates adapted to everyday manufacturing needs.
Industrial reliability
Designed for regular use with stable performance in operation.
Material versatility
Suitable for cutting steel, stainless steel and aluminium.
Reduced maintenance
Robust design limits interventions and ensures long-term durability.
Industrial applications
The DENER BS NC guillotine shear is particularly suited for the following operations:
- Sheet metal cutting in fabrication workshops
- Preparation of parts for bending or assembly
- Small and medium batch production
- Industrial subcontracting
- Manufacturing of metal parts
- Cutting of steel, stainless steel and aluminium
Why choose this product
The DENER BS is an ideal solution for industrial companies looking for a simple, reliable, and efficient guillotine shear. It ensures consistent cutting quality while simplifying daily operations.
It is a relevant investment for any company aiming to optimise its cutting operations without complexity, with a robust machine suited to essential production needs.
Availability & related services
Delivery, commissioning, installation, and training available.
Parlons de votre projet !
NC guillotine shear
The proven welded steel construction provides a solid, precise, and user-friendly structure, trusted by thousands of customers worldwide.
Dener guillotine shears have a cutting capacity for sheets ranging from 6 to 20 mm thick and 2 to 6 meters in length as standard. We also offer machines with higher cutting capacities upon special request.
These shears stand out with several features: an NC controller for rear stop control, manual blade gap adjustment, a motorized rear stop with ball screw, and adjustable front guards.
EHT 071 Control Unit
The EHT 071 is an intuitive control unit for single-axis shears. It offers a memory of 99 programs, each containing up to 20 cutting steps, allowing optimal and user-specific operation.
Ball Table
The ball table at the front allows the operator to easily move the sheet towards the cutting area.
Cutting Line Illumination
The cutting line serves as a guide, enabling the operator to make precise cuts.
Réglage motorisé de l’écart entre lames (option)
The blade gap automatically adjusts according to the sheet thickness. Thanks to this adjustment system, clean, precise, and high-quality cuts are achieved.
Back Gauge System
Motorized back gauge with a precision of ± 0.1 mm.
Removable Pneumatic Rear Support (optional)
Maintains the integrity of the cut sheets.
standard
Equipements
- Dener Ht 071 NC Control Unit
- Hydraulic sheet holders
- Front ball table
- Sheet supports with T-slots and integrated ruler
- Motorized back gauge
- Foot pedal with emergency stop button
- Front anti-pinch guard
- Removable front guard over one meter
Options
- CNC Controller Esa 530
- Motorized blade gap adjustment
- Manual centralized lubrication system
- Pneumatic rear sheet support system
- Laser cutting line
- Anti-pinch light curtain
