DDS type ballscrew electric press brake
- 100% electric.
- Up to 40% energy savings.
- 30% faster than a hydraulic press brake.
- High bending speeds with reduced noise levels.
- Low maintenance costs.
- Environmentally friendly and ergonomic.
- Ram movement via ball screws ensures very high precision.
- Automatic calculation of bending sequences for STEP and DXF files.
- Standard PROMECAM/AMADA tool mounting.
- ESA touchscreen CNC control with a 21" screen.
- Quick and easy to use.
- 100% electric.
- Up to 40% energy savings.
- 30% faster than a hydraulic press brake.
- High bending speeds with reduced noise levels.
- Low maintenance costs.
- Environmentally friendly and ergonomic.
- Ram movement via ball screws ensures very high precision.
- Automatic calculation of bending sequences for STEP and DXF files.
- Standard PROMECAM/AMADA tool mounting.
- ESA touchscreen CNC control with a 21" screen.
- Quick and easy to use.

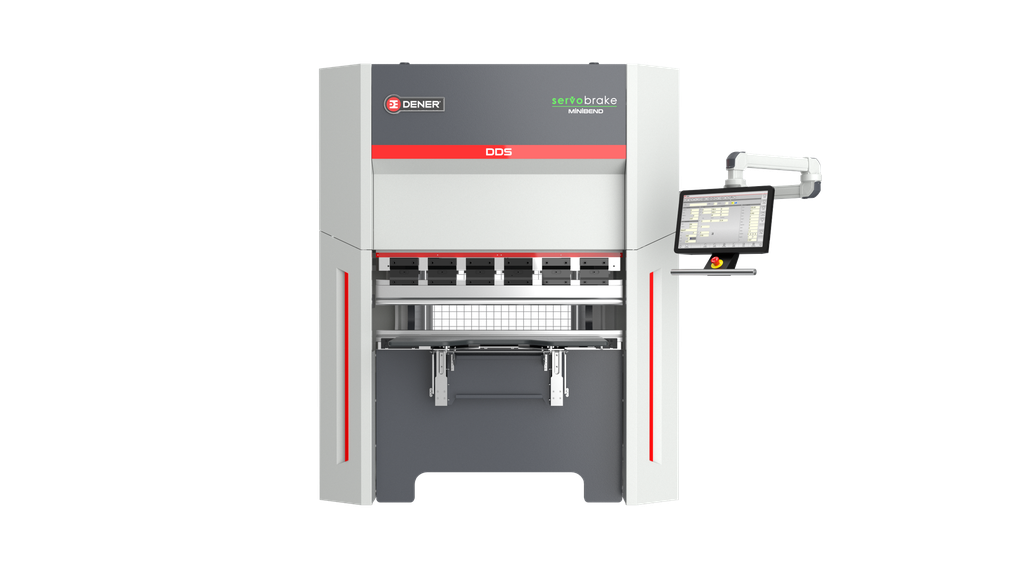

ballscrew Electric press brake, DDS type
Dener ballscrew press brakes are electric, eco-friendly, and reliable bending machines. They offer low energy consumption, minimal maintenance, and are equipped with an ESA-type CNC controller. They also feature a quick clamping system (optional) and a standard 4-axis backgauge (Y1-Y2-X-R), expandable up to 7 axes (Y1-Y2-X-R-Z1-Z2-XPRIME), enabling the high-speed production of complex parts.
These machines are available in 2 versions :
- DDS 2090 (20 tonnes x 900mm)
- DDS 40130 (40 tonnes x 1300mm)
ESA S875W 21" Touchscreen 3D CNC Controller
WILA type tool holder (option)
WILA type attachment
Backgauge fingers
Backgauge fingers with 3 positions, manually adjustable laterally.
Light barrier
DSP laser enabling high-speed machine operation.
Air conditioning for electrical cabinet.
Folding width
Gap between side frames equal to the bending length.
Standard equipment
- European-style punch holder in PROMECAM/AMADA sectional format.
- ESA S 875W control unit.
- 4 axes – Y1, Y2, X, R.
- Side and back safety gates
- CE norm DSP Laser front protection system.
- Electrical system 380 V, 50-60 HZ, 3Ph
- Electrical cabinet cooling system
Options
- Delem DA 66T control unit
- Delem DA 69T 3D control unit.
- Fiessler Akas 2 M(P) protection system
- CE norm light curtain.
- Wila mechanic tool holding system
- Wila hydraulic tool holding system
- 7-axis back gauge Y1-Y2-X-R-Z1-Z2-XPRIME.
- Foldable front support shelf
