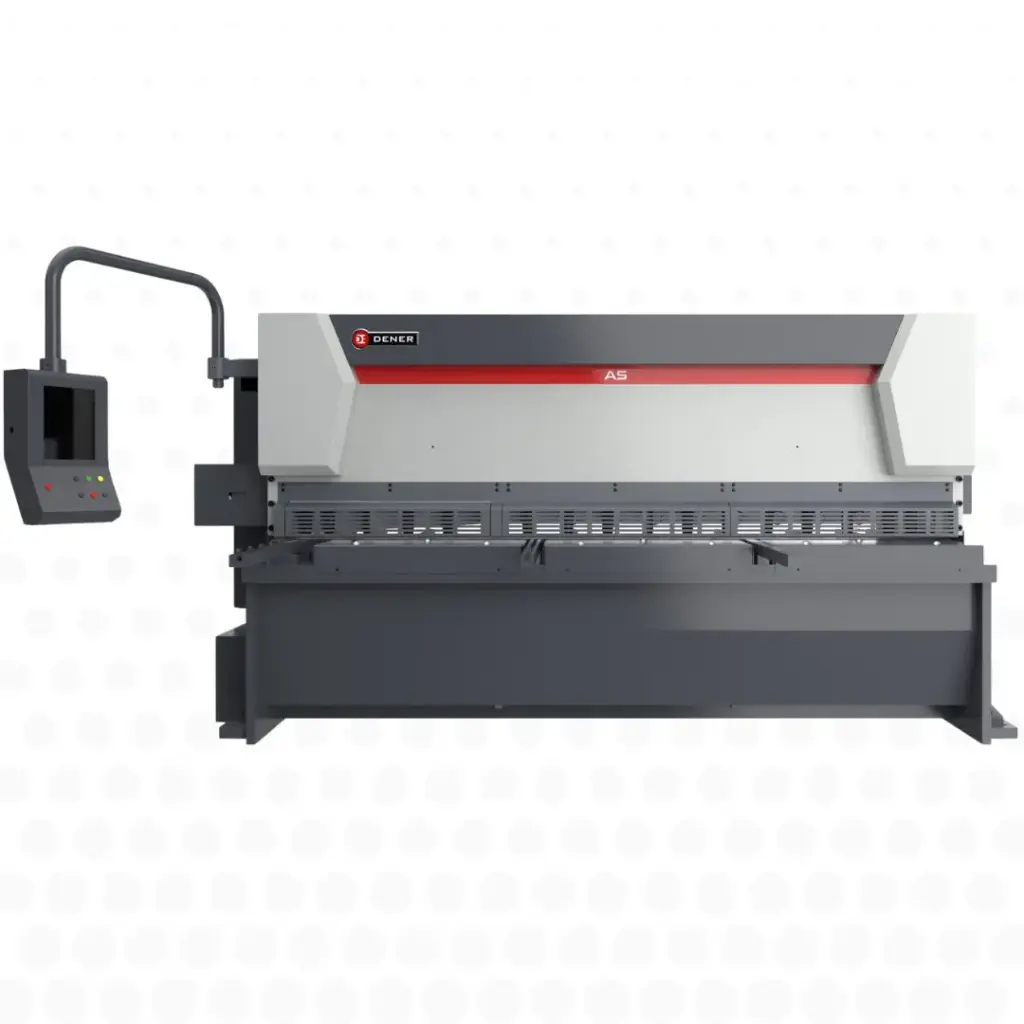

AS type CNC shear
Marque : DENER
Faster and higher-quality cuts.
Robust and durable structure.
Automatic blade gap and cutting angle adjustment.
Automatic backgauge adjustment.
High precision and easy operation.
Low maintenance costs.
Enhanced safety.
Globally recognized and reliable components.
Optimize your cutting operations with the DENER AS, a CNC shear designed to combine precision, speed and reliability in production. Designed for modern sheet metal workshops, it ensures clean and consistent cuts while offering great ease of use. Ideal for demanding industrial environments, it helps improve productivity while keeping operating costs under control.
Key features & benefits
High cutting precision
Ensures clean and consistent cuts thanks to precise control of the cutting process.
Optimised productivity
High production rates help increase workshop output.
Ease of use
Intuitive CNC interface simplifies programming and operation.
Industrial reliability
Designed for intensive use with excellent stability in production.
Material versatility
Suitable for cutting steel, stainless steel and aluminium.
Controlled maintenance
Robust design reduces interventions and ensures long-term durability.
Industrial applications
The DENER AS CNC shear is particularly suited for the following operations:
- Sheet metal cutting in fabrication workshops
- Preparation of parts for bending or assembly
- Small and medium batch production
- Industrial subcontracting
- Manufacturing of metal parts
- Cutting of steel, stainless steel and aluminium
Why choose this product
The DENER AS is an ideal solution for industrial companies looking for a precise, reliable, and efficient CNC shear. It ensures consistent cutting quality while optimising production performance.
It is a relevant investment for any company aiming to improve productivity while controlling costs, with a simple and robust machine suited to daily operations.
Availability & related services
Delivery, commissioning, installation, and training carried out by our teams.
Let’s talk about your project!
CNC shear
Dener CNC shears feature a robust mechanical structure, powered by hydraulic cylinders, with ball screw-guided movement ensuring both reliability and precision. This system is paired with a user-friendly CNC controller. Dener shears offer cutting capacities from 6 mm to 20 mm thickness for mild steel (45 kg), with standard cutting lengths ranging from 3 m to 6 m. For other dimensions, please contact us.
Their monobloc frame guarantees maximum rigidity and high resistance to torsion, delivering high-quality cuts. The operator simply inputs the material thickness and type, and the ESA S 530 controller automatically adjusts the cutting angle and blade gap.
ESA S 530 Controller
7″ TFT LCD screen • Backgauge control • Blade gap adjustment • Cutting angle adjustment • Cutting length setting • Programmable up to 100 steps
Front Safety Guard
Front safety guard along the entire cutting length. Can be disengaged over 1000 mm for small parts.
Monobloc Structure
A robust monobloc frame providing exceptional cutting quality from 6 mm to 20 mm.
Réglage entre lames automatique
Automatic blade gap adjustment system ensures precise cuts every time.
Backgauge
Motorized backgauge with fast positioning and a precision of ± 0.1 mm.
Pneumatic Removable Rear Sheet Support
Supports thin sheets during cutting, preventing distortion or warping.
standard
Equipements
- ESA S 530 CNC Control Unit
- Automatic adjustment system for cutting angle and blade gap
- Hydraulic sheet holders
- Front ball transfer table
- Pneumatic removable rear sheet support
- Front sheet supports with graduated square ruler
- Motorized backgauge
- Remote foot pedal with emergency stop button
- Front safety guard with protective grille
- LED lighting on cutting line
- CE-compliant safety system
More details
Options
- Manual centralized lubrication system
- Oil temperature maintenance system
- Pneumatic free-roller sheet follower
- Cutting laser
